Description

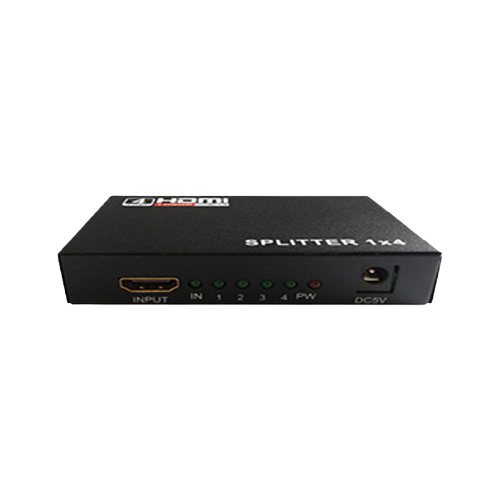

The Haydon Active HDMI splitter range uses a single HDMI source, accessing to multiple HDMI devices. It allows one HDMI device to be split easily to 2 or 4 HDMI compatible monitors or projectors. In addition, they can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this HDMI splitter can be up to 3840X2160/30HZ.
Technical Features
- Support HDMI 1.4b version
- Support 3D video format
- Support high resolution up to 3840X2160/30HZ
- Support highest rate of 3.2 G and TMDS clock can be up to 320MHz
- Support 8/10/12 bit deep color
- Support AWG26 HDMI standard cable: input up to 15 meters, output up to 25 metres.
- When the resolution is 4K, input up to 12 meters, output up to 15 metres.
- Support one single HDMI source, accessing to multiple HDMI sinks, the source can be a DVD player, A/V receiver or any equipment with HDMI output
- 5V/1A power adapter
- Full Copper Cat5 is to be used at all times to ensure continuity of HDMI Signal
