• Can be expanded up to 4 units for 4 lines. USB & RJ11 interface
• Identifies inbound and outbound call numbers. Demo program provided
• Inbound ringer, line status, phone status detection. Records talk time
• Auto line polarity detection, online, stop ringer control
• Compatible DTMF/Bellcore FSK/ ETSI FSK CID.
• No separate drivers needed for Windows
• Open source codes Delphi, VB, VC, Demo, simple API and SDK provided

Low cost USB caller ID device with easy to integrate
software interface

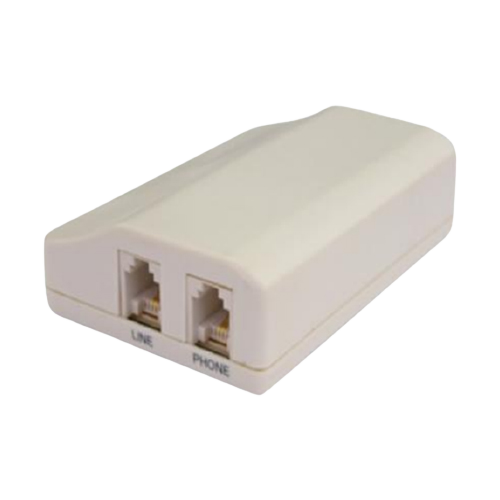

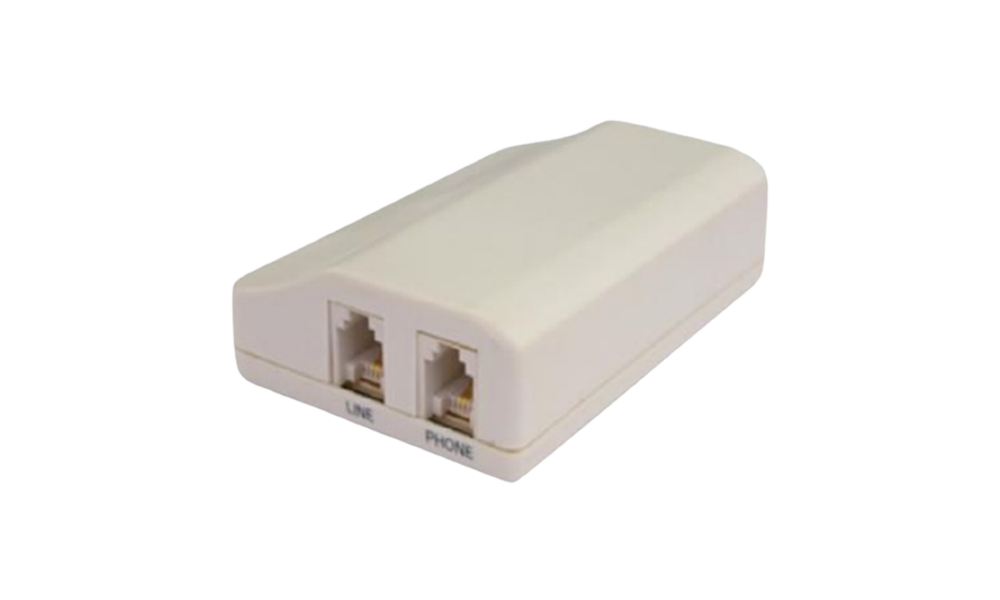

102 single line caller ID USB device is a clever piece of caller ID hardware with a user friendly
interface for software companies, OEM’s and system integrators. It’s a powerful and flexible tool.

• Can be expanded up to 4 units for 4 lines. USB & RJ11 interface
• Identifies inbound and outbound call
  numbers. Demo program provided
• Inbound ringer, line status, phone status
  detection. Records talk time
• Auto line polarity detection, online, stop
  ringer control
• Compatible DTMF/Bellcore FSK/ ETSI FSK
  CID.
• No separate drivers needed for Windows
• Open source codes Delphi, VB, VC, Demo, simple API and SDK provided

AD102 Specification

DTMF Signal Sensitivity           DTMF Signal Sensitivity：                     -40dB－-5dB

                                                    DTMF Frequency Variation：                <2.5%

                                                    DTMF Digit and Inter digital time：        40－120 ms

FSK Signal Sensitivity              Signal Level：                                        -30－ 0d

                                                    Signal/Noise Ratio：                              >18

Interface                                     LINE/PHONE port:                                  RJ11

USB port                                                 Type-B Female

Line Voltage                               C.O Line Voltage :                                   35V-60V

Ring voltage：                                        35V－135V

Impedance                                  Line impedance                                      Static >450K, converting >22k,AC Impedance >450k

Power Consumption                  Converting current consumption            <2mA (<80uA Quiescent idle)

Working Environment                Temperature & Humidity                         -20℃－+80℃, <95% rh

Dimensions & weight                 Dimensions 223 x 157 x 42mm              Weight 200g
