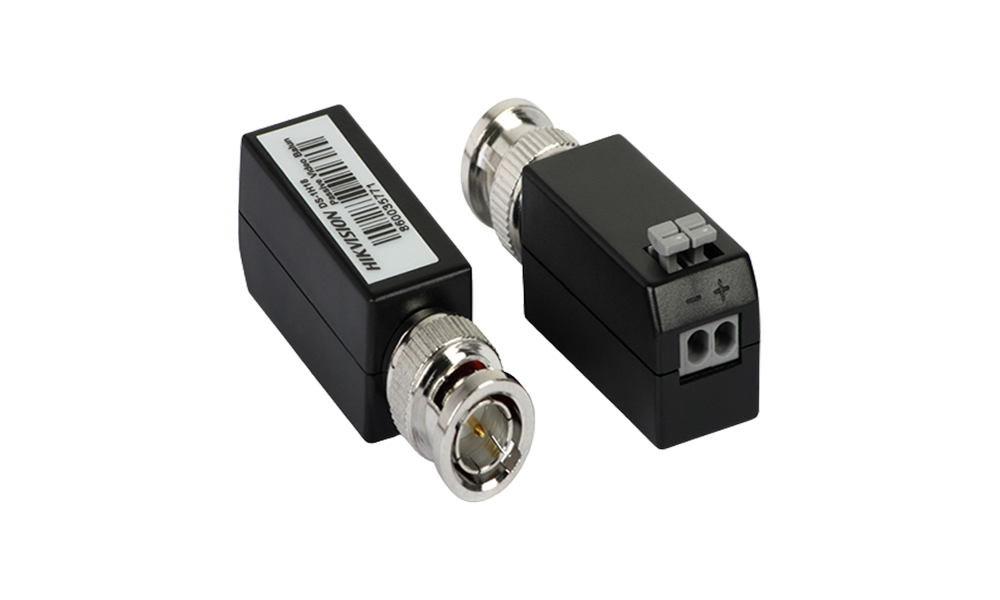

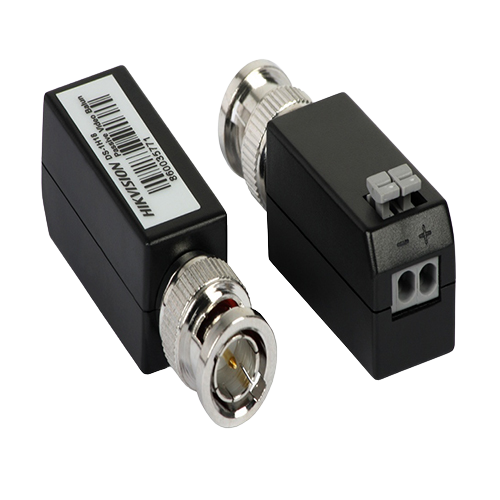

High-Quality Balun allows you to connect any camera or DVR over CAT5 Ethernet cable.High-Quality Balun allows you to connect any camera or DVR over CAT5 Ethernet cable. Transmitter and receiver of CCTV video for use with CAT5 Cable Perfect for long distance cables up to 600 Meters 10-20% wire cost saved Outstanding interference rejection and transient protection Male BNC allows connection directly to the camera or DVR
| Standard: |
|
| Device type: | Passive |
| Number of channels: | 1 |
| Video transmission range: |
|
| Attenuation: |
The attenuation applies to two devices connected to each other |
| CMRR (dB @ 5MHz): | 60 dB |
| Coaxial socket impedance: | 75 Ω |
| Symmetrical socket impedance: | 100 Ω |
| Coaxial socket type: | BNC plug |
| Symmetrical socket type: | Spring terminals |
| Operation temp: | -10 °C … 70 °C |
| Permissible relative humidity: | < 95 % |
| Weight: | 0.016 kg |
| Dimensions: | 52 x 20 x 15 mm |
| Manufacturer / Brand: | Hikvision |
| SAP Code: | 301600259 |
| Guarantee: | 1 years |
£11.50
